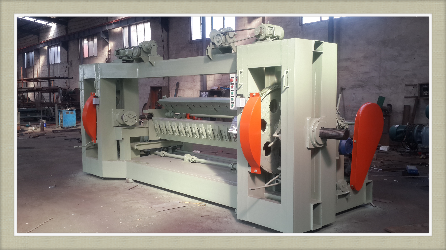

plywood machines 2700mm Spindle peeling Line

2700mm Spindle peeling Line



Names Parameters
Max. Working length 0.6-2.6 mm
Max. Working length 2600 mm
Max. Working diameter 1200 mm
Main spindle speed 58/87r/min
Total power Weight
Overall dimensions 5700*2250*2450 mm

2600mm veneer rotary clipper

2600mm veneer rotary clipper
Names Parameters
Cutting length  2700 mm
power  5kw
Max. Working diameter 2500*2800*800 mm
weight 800kg

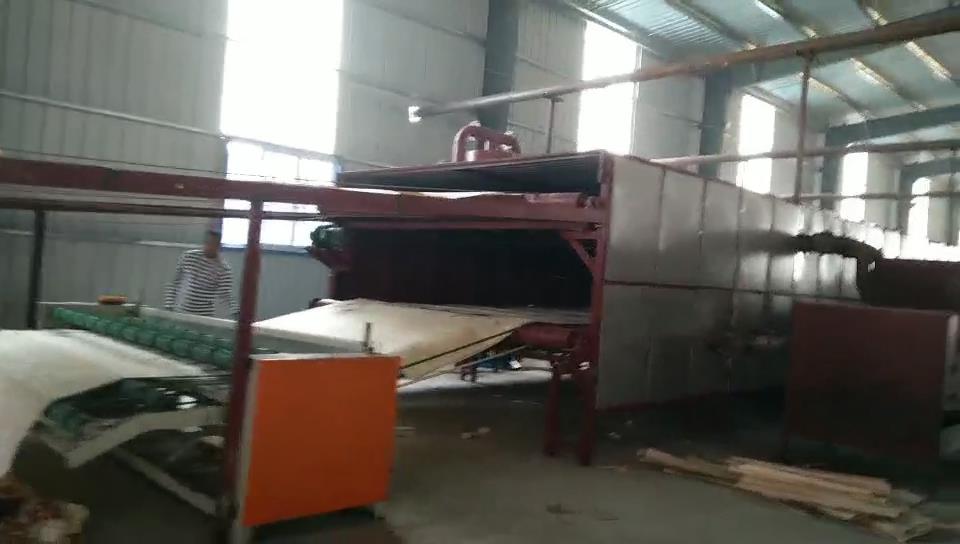

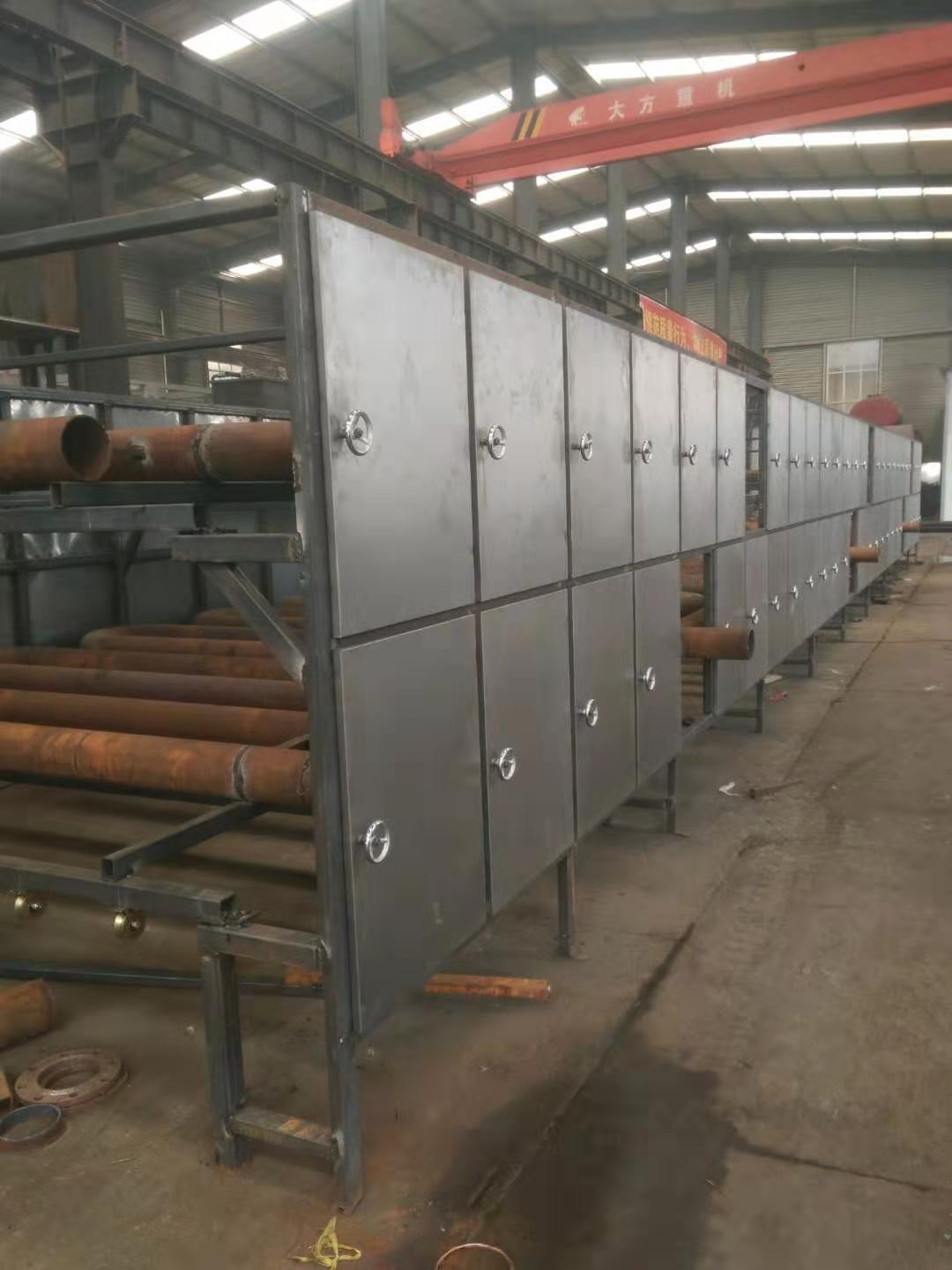

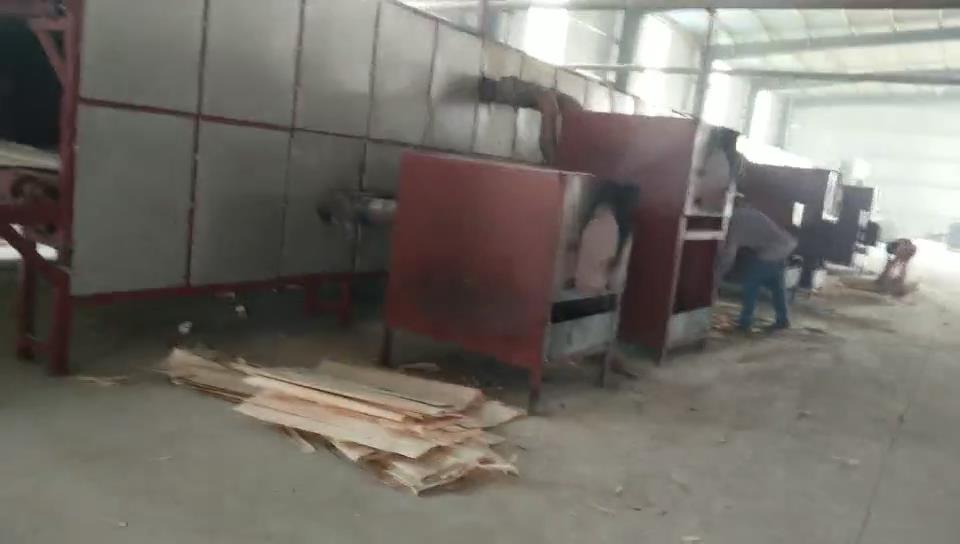

2600mm veneer dryer machine

2600mm veneer dryer machine
2600mm veneer dryer machine
2600mm veneer dryer machine
2600mm veneer dryer machine
Names Parameters
Total length 24 Meters(20M for heating,4M for cold)
Max drying capacity 20m3/day
Veneer conveyor speed 10m/min—30m/min
Veneer size Thickness:0.1mm-1.2mm Width:2800mm
Motor power 24kw
Motor power of induced draft fan 3kw*3

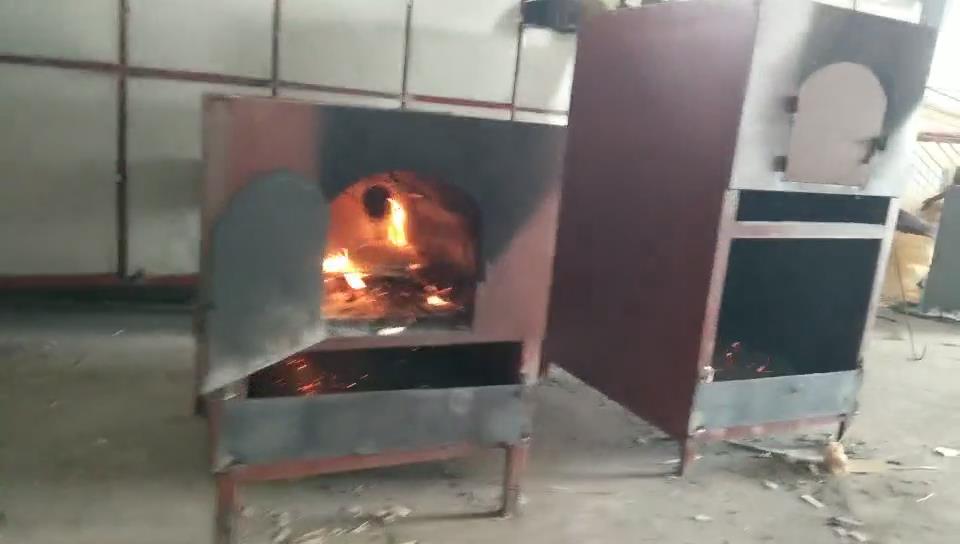

Igniter 3PCS(1000*800*600mm)
Overall size 30000*3400*2250mm

-------------END-------------
