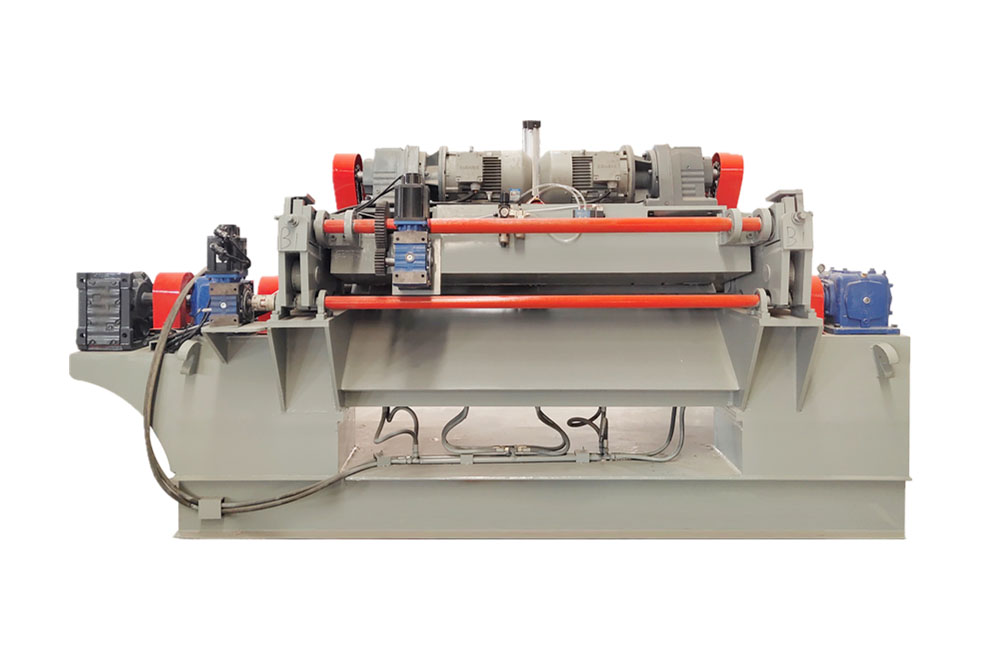

4ft hardwood Spindleless rotary peeling machainery

25 Sep,2019

 4ft hardwood Spindleless rotary peeling machainery
Name Unit Parameter
Length of peeling log mm 970mm-1270mm-1300mm
Maxi peeling log diameter mm 500mm
Left core diameter mm 30mm
Peeling Thickness Range mm 0.8mm-8.0mm
Peeling output speed m/min constant speed60m、Adjust speed 60m-120m
Roll Power KW Double roller Motor:11KW
    Single roller Motor:5.5KW*2
    Feed Motor:11KW Servo Motor
    Shear Motor:2.2KW Servo Motor
    Cot Motor:2.2KW AC Motor
Reducer Model R87 Helical gear reducer
Size mm 4300mm*1700mm*1600mm
Weight KG 6000KGS
Production Efficiency 8 hours eucalyputs 1.7mm:50CBM
    eucalyputs 2.2mm:60CBM
    eucalyputs 3.6mm:90CBM
    eucalyputs 6.0mm:120CBM

Main Function
1 Auto trimming function of residual tail plate
2 use cyliner to hit wood core
3 Alloy head screw and tin bronze nut
4 Taiwan HIWIN liner motion products&technology
5 Easy knife function,convenient disassembly
6 Both sides of veneer are smooth
