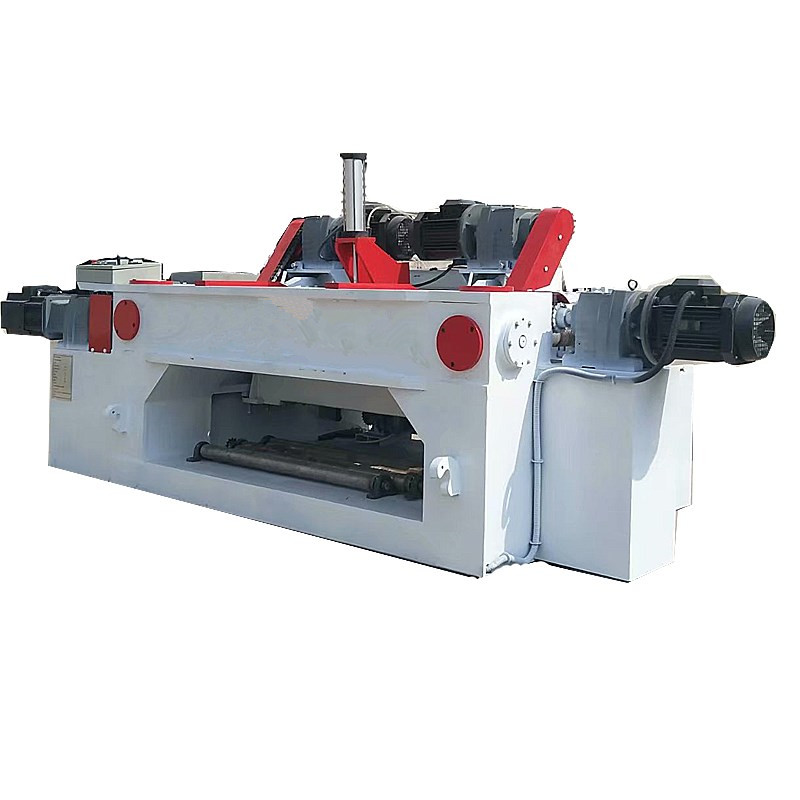

Spindleless 4ft eucalyptus rotary peeling machines
|
Name |
Unit |
Parameter |
|
Length of peeling log |
mm |
970mm-1270mm-1300mm |
|
Maxi peeling log diameter |
mm |
400mm |
|
Left core diameter |
mm |
28mm |
|
Peeling Thickness Range |
mm |
0.3mm-4.0mm |
|
Peeling output speed |
m/min |
constant speed60m、Adjust speed 60m-120m |
|
Roll Power |
KW |
Double roller Motor:11KW |
|
|
|
Single roller Motor:5.5KW*2 |
|
|
|
Feed Motor:11KW Servo Motor |
|
|
|
Shear Motor:2.2KW Servo Motor |
|
|
|
Cot Motor:2.2KW AC Motor |
|
Reducer Model |
R87 |
Helical gear reducer |
|
Size |
mm |
4300mm*1700mm*1600mm |
|
Weight |
KG |
5500KGS |
|
Production Efficiency |
8 hours |
eucalyputs 1.7mm:50CBM |
|
|
|
eucalyputs 2.2mm:60CBM |
|
|
|
eucalyputs 3.0mm:80CBM |
|
|
|
eucalyputs 3.6mm:90CBM |
|
Main Function |
|
|
|
1 |
Auto trimming function of residual tail plate |
|
2 |
use cyliner to hit wood core |
|
|
3 |
Alloy head screw and tin bronze nut |
|
|
4 |
Taiwan HIWIN liner motion products&technology |
|
5 |
Easy knife function,convenient disassembly |
|
6 |
Both sides of veneer are smooth |
|
