25 Nov,2019

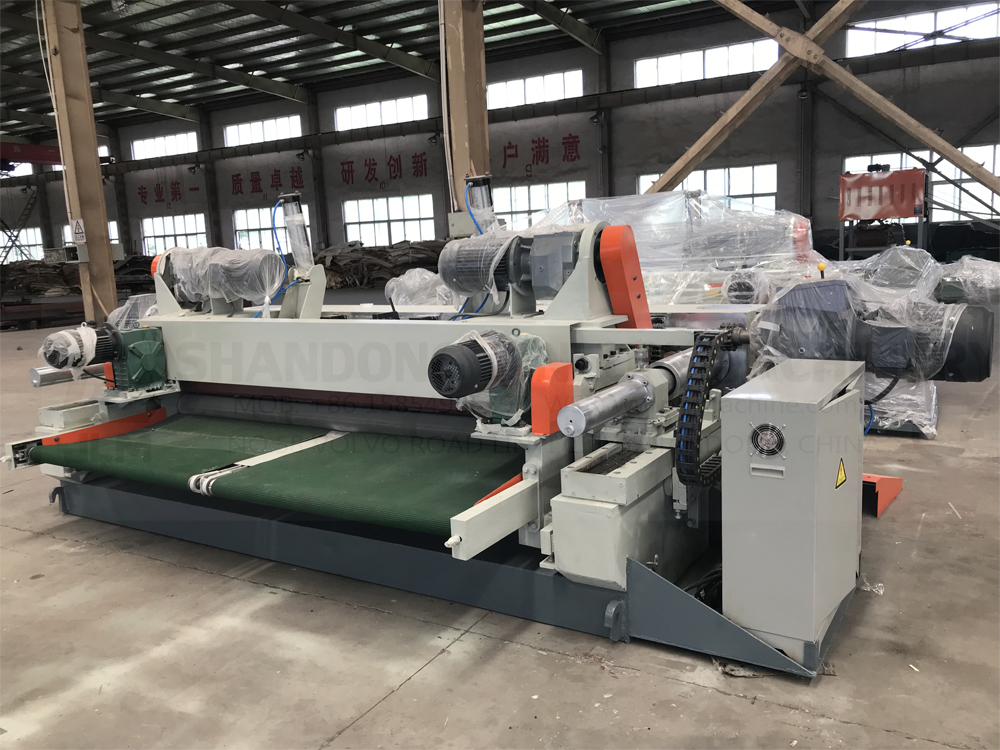

The wood of eucalyptus has special properties, and the wood raw materials in many areas are eucalyptus materials. Linyi Guoyu Machinery Co., Ltd. is a single-plate rotary peeling machine for the processing of veneer by these beech wood peeling machines. The blade hardness of these rotary peeling machines is combined with the long-term processing of the beech veneer.
| Veneer Rotary Peeling Machine | Unit | Parameters |
| Length of peeling log | mm | 970mm-1270mm-1300mm |
| Maxi peeling log diameter | mm | 400mm |
| Left core diameter | mm | 28mm |
| Peeling Thickness Range | mm | 0.3mm-4.0mm |
| Peeling output speed | m/min | constant speed60m、Adjust speed 60m-120m |
| Roll Power | KW | Double roller Motor:11KW |
| Single roller Motor:5.5KW*2 | ||
| Feed Motor:11KW Servo Motor | ||
| Shear Motor:2.2KW Servo Motor | ||
| Cot Motor:2.2KW AC Motor | ||
| Reducer Model | R87 | Helical gear reducer |
| Size | mm | 4300mm*1700mm*1600mm |
| Weight | KG | 5500KGS |
| Production Efficiency | 8 hours | eucalyputs 1.7mm:50CBM |
| eucalyputs 2.2mm:60CBM | ||
| eucalyputs 3.0mm:80CBM | ||
| eucalyputs 3.6mm:90CBM |
