4ft,poplar/pine/birch rotary peeling machinery

16 Sep,2019

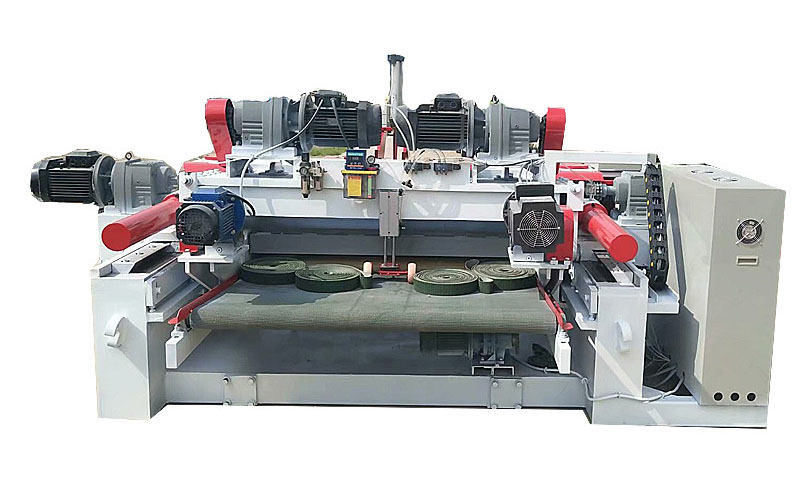

Wood veneer peeler making machine/ wood log peeling and cutter machine
Name Unit Parameter
Length of peeling log mm 970mm-1270mm-1300mm
Maxi peeling log diameter mm 500mm
Left core diameter mm 30mm
Peeling Thickness Range mm 0.3mm-4.0mm
Peeling output speed m/min constant speed45/52/62m
Roll Power KW Double roller Motor:7.5KW
    Single roller Motor:7.5KW
    Feed Motor:7.5KW AC Motor
    Shear Motor:1.5KW AC Motor
    Cot Motor:1.5KW AC Motor
Reducer Model BWD Cycloid reducer
Size mm 4300mm*1700mm*1600mm
Weight KG 4200KGS
Production Efficiency 8 hours eucalyputs 1.7mm:40CBM
    eucalyputs 2.2mm:50CBM
    eucalyputs 3.0mm:65CBM
    eucalyputs 3.6mm:80CBM

Main Function
1 Auto trimming function of residual tail plate
2 use cyliner to hit wood core
3 Alloy head screw and tin bronze nut
4 Taiwan HIWIN liner motion products&technology
5 Easy knife function,convenient disassembly
6 Both sides of veneer are smooth
