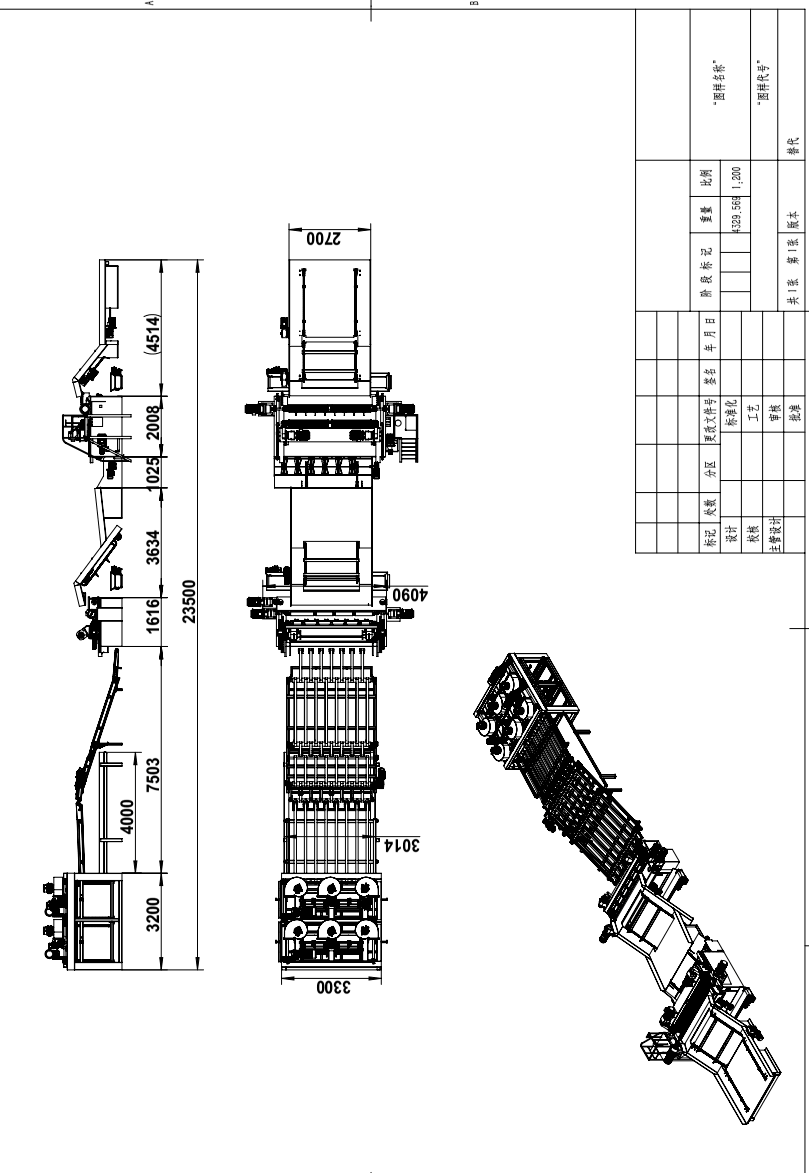

8ft Peeling Machines Full Line

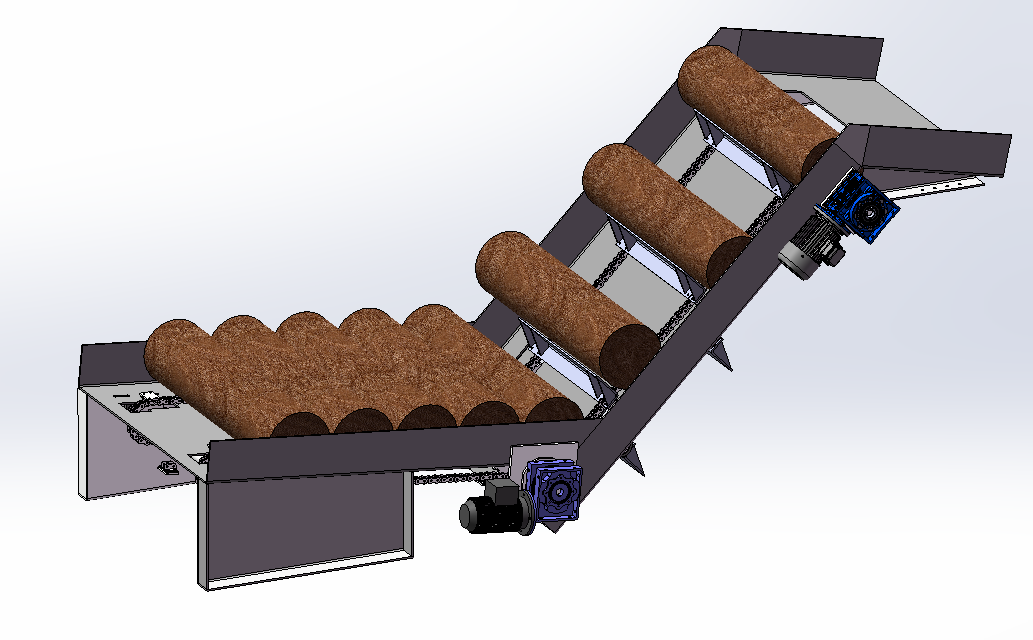

Loading machines for debarker(original logs)

Loading machines for debarker

DESCRIPTION UNIT PARAMETERS
Max.diameter of logs mm 600mm
Linear speed of host machine m/min 30mm
Conveyor motor kw 4kw+4kw
Reducer   Large Turbine Worm Reducer

Log Debarker machines

Log Debarker machines
DESCRIPTION UNIT PARAMETERS
Length of peeler log mm 1960mm--2600MM
Diameter of peeler log mm Maximum 600mm—Core 100mm
Rotary cutting thickness range mm 1mm—4.0mm
Linear speed of host machine m/min 45m
The main auxiliary motor power KW Main motor:11+11+7.5+7.5KW
Feeding dyraulic 5.5KW
Reducer   Host R helical gear reducer
Main function   Cylindrical peeling bark and branches with logs

Right machines

Right machines

DESCRIPTION UNIT PARAMETERS

Max.diameter of logs

mm 600mm

Linear speed of host machine

m/min 30mm

Conveyor motor

kw 1.5kw +1.5KW

Reducer



Large Turbine Worm Reducer


Loading machines for peeling

Loading machines for peeling

DESCRIPTION   UNIT PARAMETERS
Max.diameter of loading mm 600mm
Linear speed of host machine m/min 30mm
Conveyor motor power kw 4kw
Redecer

Large Turbine Worm Reducer

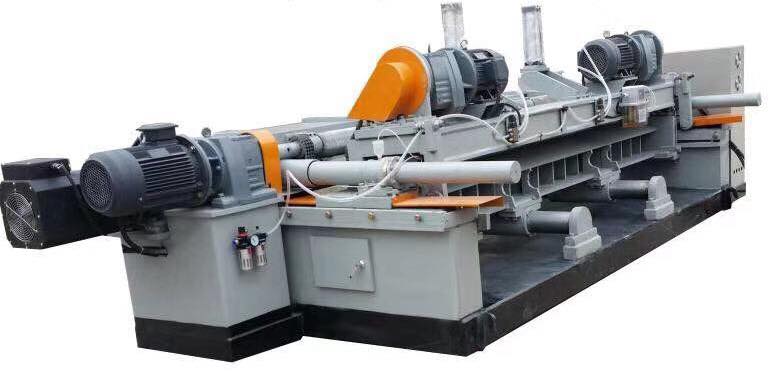

Rotary peeling machines in exact thickness

Rotary peeling machines in exact thickness
DESCRIPTION UNIT PARAMETERS
Length of peeler log mm 1970mm--2600mm
Diameter of peeler log mm Max 500mm—core left 30mm
Maximum 500mm—Core 30mm
Rotary cutting thickness range mm 0.3mm—4mm
Linear speed of host machine m/min 45M--120M Adjustable
The main auxiliary motor power KW Host7.5+7.5+7.5+7.5KW
Feeding 11KW AC Motor
Cutting motor 4KW AC,Roller Motor 4KW。
Reducer

Host R helical gear reducer

Main function

Japan smc guide cylinder to remove left core
Alloy screw and Tin bronze nut
Wear-resistant guideway
Diameter of double roller:120MM double motors:7.5+7.5KW。
Diameter of single roller :106MM double motors:7.5+7.5KW

8ft closing machines with workers

8ft closing machines with workers
item unit parameter
Length mm 6000mm
Thickness range mm 0.3mm---6mm
Linear speed m/min Same with peeling machines
Motor power KW 1.5 kw
reducer   Turbine Worm Reducer

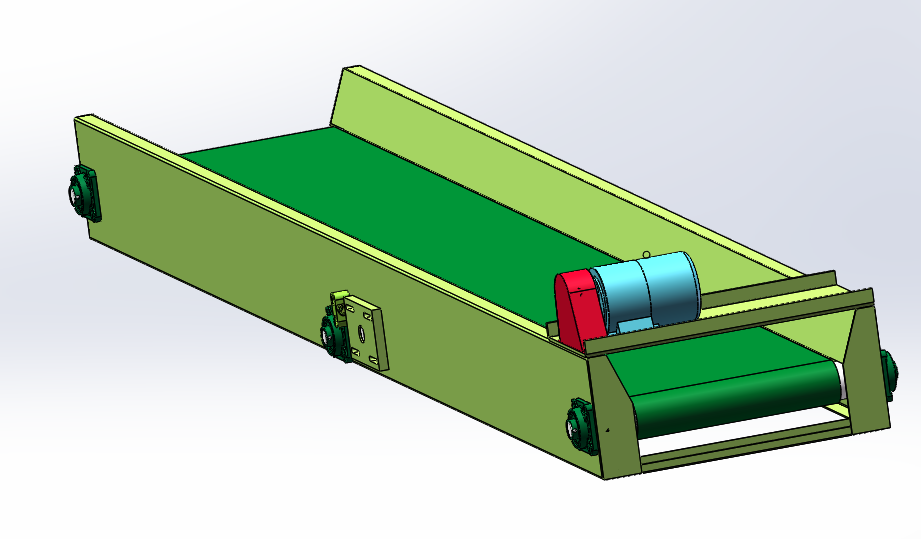

Wast conveyor belt

Wast conveyor belt
DESCRIPTION UNIT PARAMETERS

Wast conveyor

m 4m
Linear speed of host machine m/min 30mm
Conveyor motor power kw 1.5kw
Reducer   Turbine Worm Reducer
-------------END-------------
