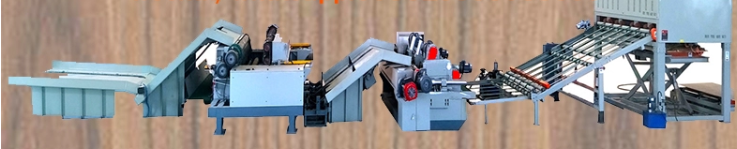

4ft Rotary Peeling Production Line

rotary peeling production Line

4ft Rotary Peeling Production Line

rotary peeling production line

DESCRIPTION

UNIT

PARAMETERS

Max.diameter of loading

mm

600

Loading speed

m/min

30

Total motor power

KW

1.5

Overall dimension

mm

3500*1000*90

Total weight

KGS

700


Logs Debarking machines

logs debarking machines

DESCRIPTION

UNIT

PARAMETERS

Length of log

mm

970-1270mm

Diameter of log

mm

600

Debark peeling thickness

mm

2.0-6.0

Debark peeling speed

m/min

50

Total motor power

kw

27.5

Overall dimension

mm

2980*2160*1320

Total weight

KGS

3000

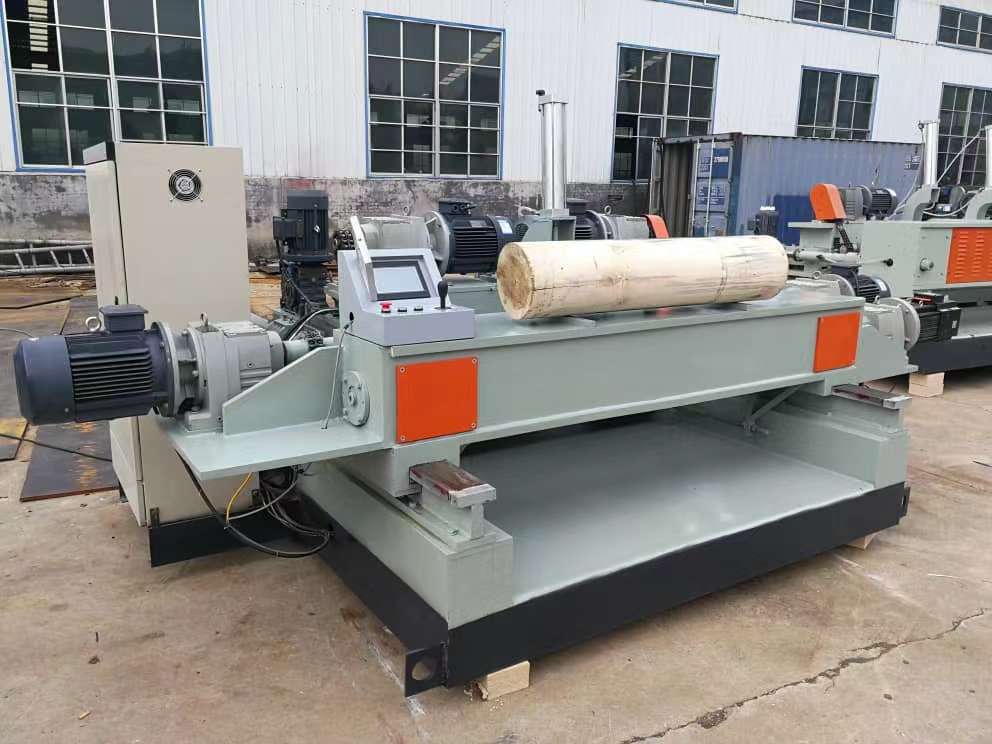

4ft Peeling machines

4ft peeling machines

DESCRIPTION

UNIT

PARAMETERS

Length of log

mm

970-1270mm

Max.diameter of log

mm

500

Left core diameter

mm

32

Diamter of single and double roller

mm

125

Peeling thickness

mm

0.8-3.2mm

Peeling Blade size

mm

1600*180*16

Peeling speed

m/min

42-80

total motor power

kw

28.5

Overall dimension

mm

3500*2200*1400mm

Total weight

KGS

5000

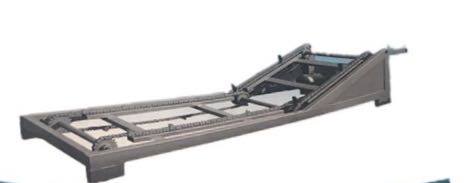

High speed stacking machine

high speed stacking machine

DESCRIPTION

UNIT

PARAMETERS

Veneer size of stacking

mm

1300*670mm/1300*500/1300*880

Veneer thickness of stacking

mm

1.0-3.6mm

Speed

m/min

80

Total motor power

Kw

5.95

Overall dimension

mm

2800*2200*2600

Total weight

kgs

1200


-------------END-------------
