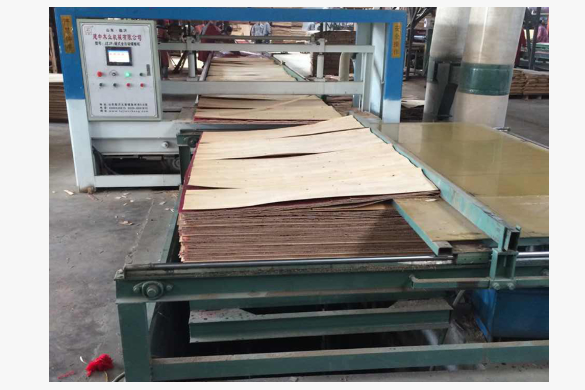

Multifunctional plywood paving machines with automatic saw cutting

Plywood paving machines use the technology of hydraulic computer transducer and cutting sides automatically,which are national patent.

automatic saw cutting machine
name parameters
long saw cutting size 1880mm-2440mm
lateral saw cutting size 910-1220mm
working speed 40-70m/min
power 49kw
saw blade dimension diameter 305mm;
  inner diameter 25.4mm
capacity 8-12 pcs/min
working style infrared ray guidance
feeding way full automatic
working methods full automatic
weight 5500kgs
overall dimension 9000*6000*1300mm

Main Features

1.     It is suitable for making plywood/shuttering plywood and furniture plywood.it can help plywood mills to reduce the production cost,save raw materials and decrease workers cost,it can be used in huge quantity production.
2.     It can cut the plywood in thickness from 5mm to 100mm
