plywood hot press machine price

Model

(SM4*8RY10-600)

Total pressure

600tons

Board feeding direction

Transverse 2700mm size

Layers

10 Layers

Layer spacing

100mm

Hot press plate

Number of hot press plate: 11pcs



Size: 2700*1370*52mm,

Two inlet and two outlet.



Material:Q235

Cylinder for hot press machine

6*ø220mm,

2* ø120mm(lift cylinder),



Wuxi cylinder, solid steel



Seal: 5 rubber seals per pcs of cylinder



Stroke: 1000mm

Hydraulic system for hot press machine

Compression resistance: 25 Mpa



Low pressure pump flowing: 75ml/r*1pcs



high pressure pump flowing: 17ml/r*1pcs



Power: 29.5kw(22KW+7.5KW)



Full automatic

Overall dimension

3550mm*1370mm*4325mm

Weight

About 39Tons

Thickness of the frame

Composite frame: Assembled



Upper and bottom beam: 900mm



Main body: 35mm Q235



Connect platen: 16mm, 20mm



middle beam: 400mm

Working methods

Full automatic

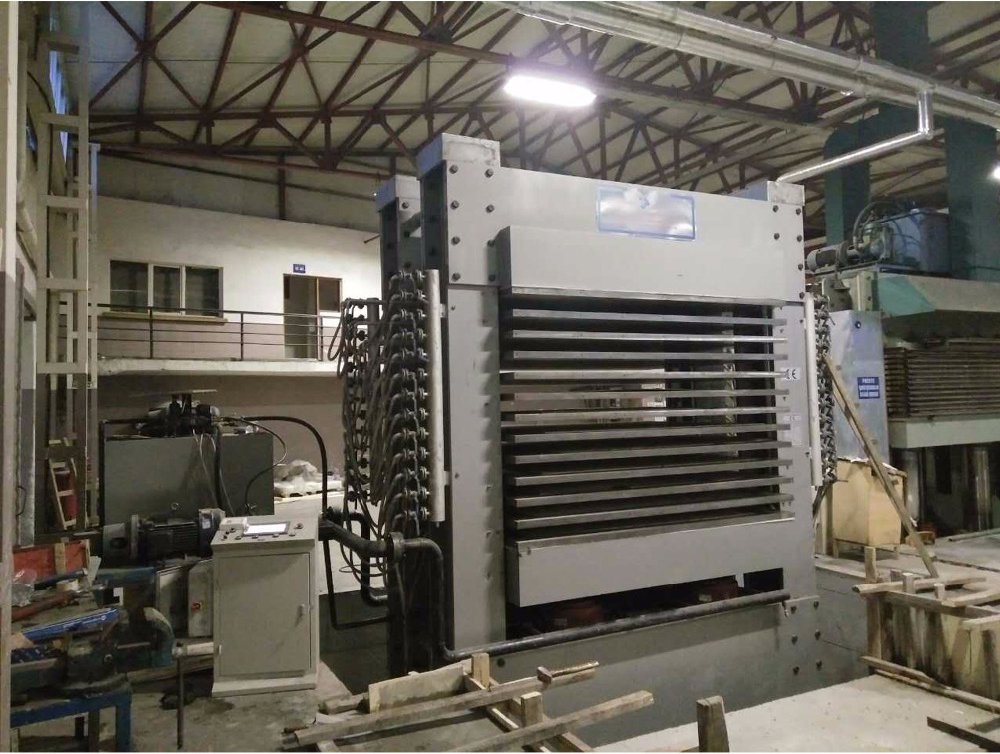

600T plywood hot press machine
