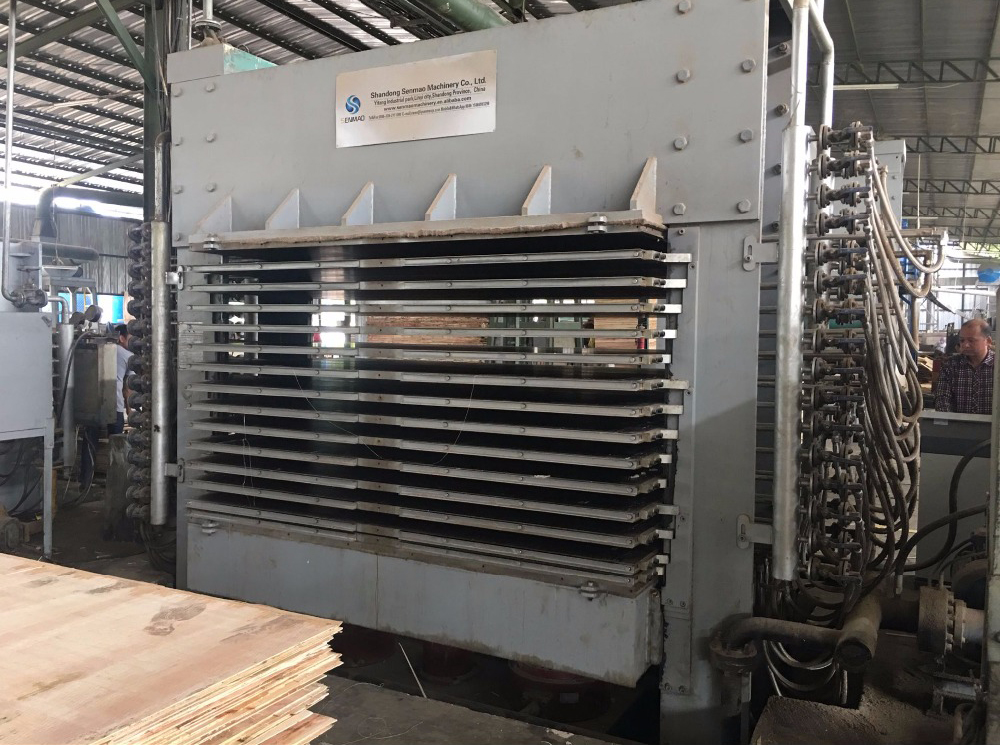

600T plywood hot press machine

19 Sep,2019

600T hot press
total pressure 600T
Board feeding direction transverse
layer spacing 70mm
number of hot press plate 21 pcs
hot press plate size 2700*1370*52mm
cylinder ⌀260mm*4pcs,180mm*1pc
stroke 1400mm
comperssion reslstance 25mpa
power 23kw
overall dimension 3550*1370*5290mm
weight 45T
working methods full automatic
composite frame assemble
upper and bottom beam 900mm
middle Beam 400mm
thickness of the frame 35mm Q235
