parameter plywood hot press machinery

plywood hot press machinery
name parameter
total pressure 400T
Board feeding direction transverse
layers 15 layer
layer spacing 70mm
work plate size 2700*1370*42mm
cylinder ⌀320mm*2pcs
compression resistance 25mpa
power 18.5kw/29.5kw
composite frame assemble
upper beam 900mm
middle Beam 400mm
Steek thickness 35mm/40mm
closing time 20S
hydraulic station 280 shanghai aviation pump 1 only
high pressure pump m25high pressure pump 1 only
overall dimension 3550*1370*4200mm
weight 32-45T
Upper and bottom beam 800mm
thickness of the frame 30mm Q235
Middle Beam 400mm

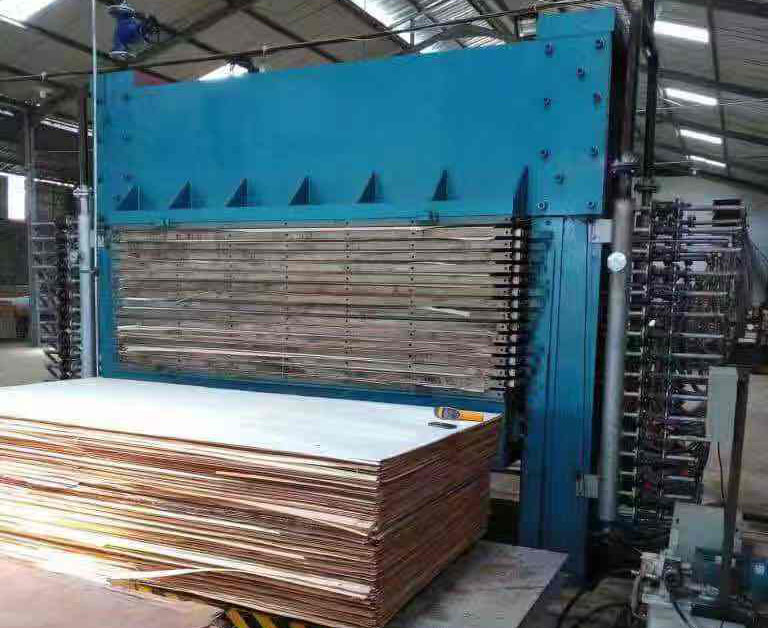

plywood hot press machinery
The plywood hot press machinery is a pressure device used by plywood companies to produce plywood. The quality of this equipment is related to the quality of the plywood produced. Therefore, the order of the hot press must pay attention to the quality of the product. The pressure of the hot press is insufficient, which will lead to many quality problems such as the opening of the plywood.
