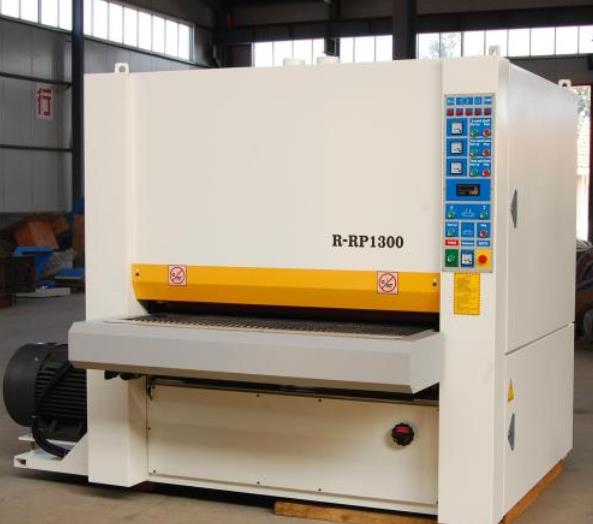

plywood sander machine Four sand frame double-sided thickness

30 Oct,2019

Four-sand double-sided thick-thick plywood sander can double-side sanding the whiteboard with high efficiency, good sanding effect and smoothing process.

plywood sander machine


name parameters
the processing thickness  2.5-80mm
sanding width 40-1300mm
abrasive belt on the linear velocity 18/16m/s
abrasive belt under the linear velocity 18/16s per second
feeding speed 6-30m/min
abrasive belt size(W*C) 1360*2800mm
motor total power 320.2kw
main motor power 75*4kw
conveyor motor power 11kw
compressed gas consumption 1.5m3/min
wind dust collection system 25-30m/s
dust collection system air volume 25000m3/h
overall dimensions*(L*W*H) 3300*3950*3000mm
the weight 24T


he four-sand double-sided thick-thick plywood sander supplied by Linyi Guoyu Machinery Co., Ltd. can thicken the whiteboard through four sand frames, so that the brushed white board has better effect. Moreover, it is a one-time double-sided sanding, which maximizes the efficiency of the brushing work, and has a good sanding effect, which provides a better guarantee for the subsequent veneering process of the plywood whiteboard.
