wood veneer dryer,squre tube veneer dryer

square tube dryer
squre tube veneer dryer
100T
Name parameters
working press power 100 tons
veneer feeding direction transverse
diameter of dry layer 15 layers
layer distance 70mm
size of hot press plate 1400*2400*40mm
thickness of hot plast  2.7mm
power 3kw,380v-50Hz
capacity 1
machine dimension 1400*3200*2520mm
weight 5.5T

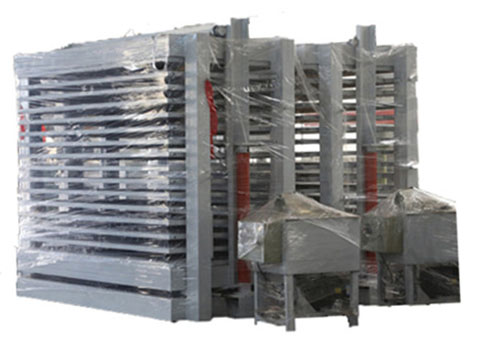

Square Tube Veneer Dryer machine
.  The cost is lower than other type dryer machine
.  easy to operate
.  save factory space
